T4: The Riemann problem:
try it out on your own

Before the tutorials:

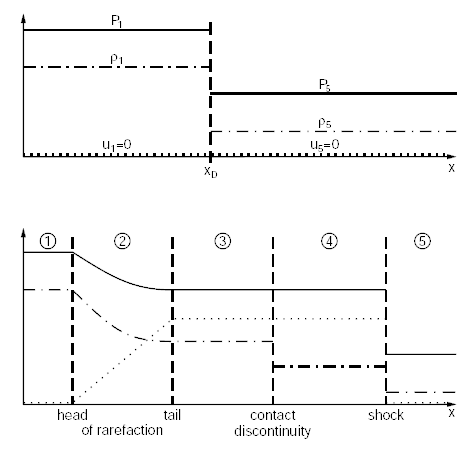

As discussed in the Lecture, the Riemann Problem is the key pillar of Eulerian hydrodynamics and can not be solved fully analytically. In the lecture, we solved a special case of it. So, start with this picture taken from Simulation Techniques for Cosmological Simulations. Now, think about:

• How can we use the particle distributions from last time to initial conditions for the problem above?
• How are different densities represented?
• How can I verify the solution I get from the simulation?

Also, remember that we had the equation with and that determines the pressure at the contact discontinuity (the pressure in sectors 3 and 4). Think about:

• How can you simply solve the this equation?
• How can you check it against the simulation performed?

During the tutorials:

You can start from the configuration of the code as obtained in T03 and collect some different particle distributions.

• Copy over the code and the parameter file as described in T03
• Copy over the Cubic Lattice you created in T03

You can now write a program to set up a long slab (along the x-axis) that represents your initial conditions.

• Stack the basic particle files along the x-direction.
• Set the left and right state.

Now you can run the simulation.

• When compiling the code, do not forget to switch on PERIODIC and NOGRAVITY again. Also, you have to indicate the non-cubic form of the simulation domain by setting LONG_X=100, LONG_Y=1 and LONG_Z=1 in the Config.sh file before compiling.
• Set up the parameter file for the simulation, especially adapt DesNumNgb, TimeMax, InitCondFile, BoxSize and SnapshotFileBase.

Programming goals for T4:

Goal of this tutorial is that you learn better how to create non-uniform initial conditions.

Solutions

• Example(s) for initial conditions
  • cp $HOME/Hydro/grid_10x10x10 .
  • cp $HOME/Hydro/grid_12x12x12 .
• Examples for script to set up simulations
  • setup_slab.pro in IDL
• Example(s) for visualizing the results
  • show_slab.pro in IDL

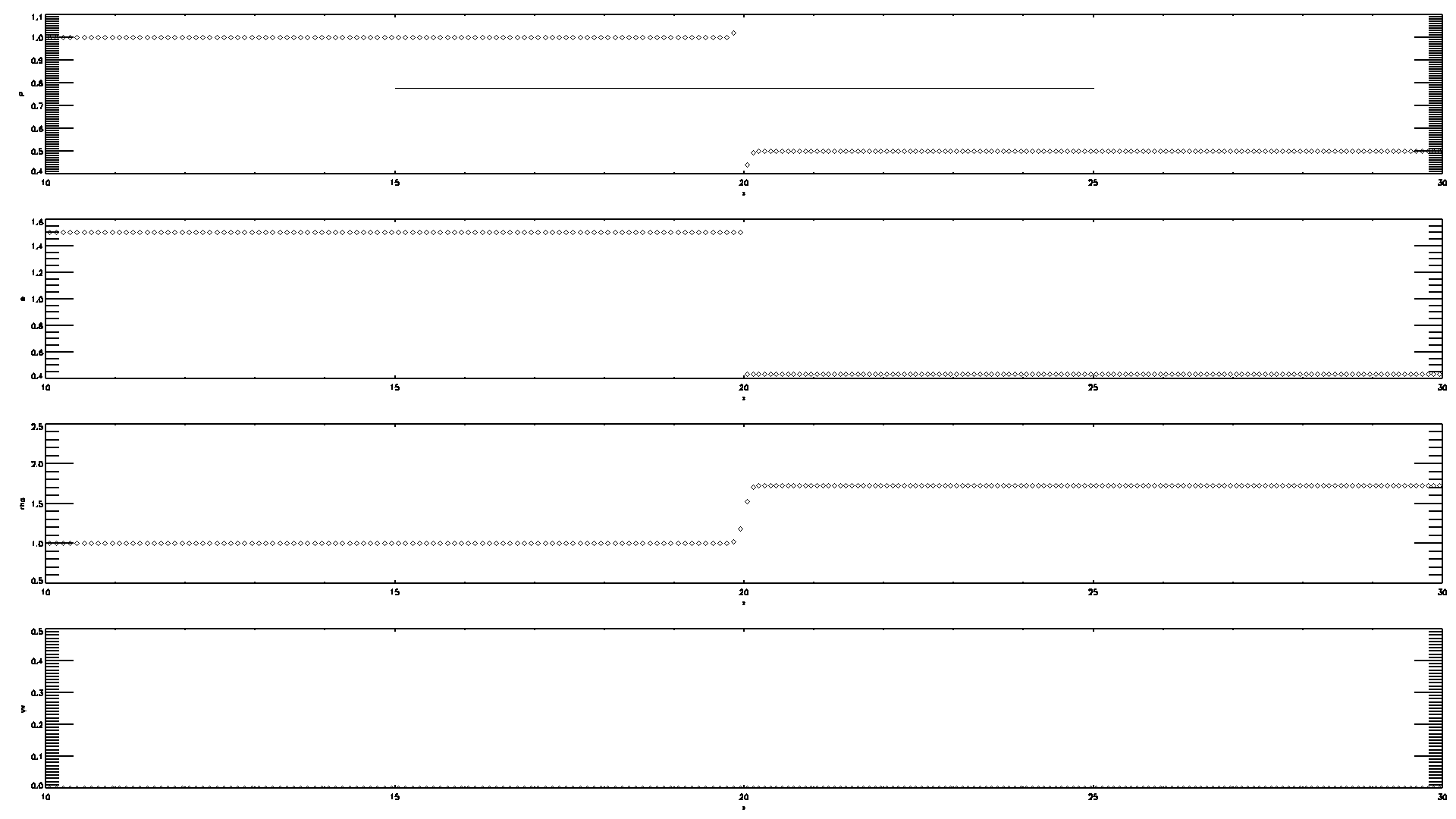

• You should see a movie like this

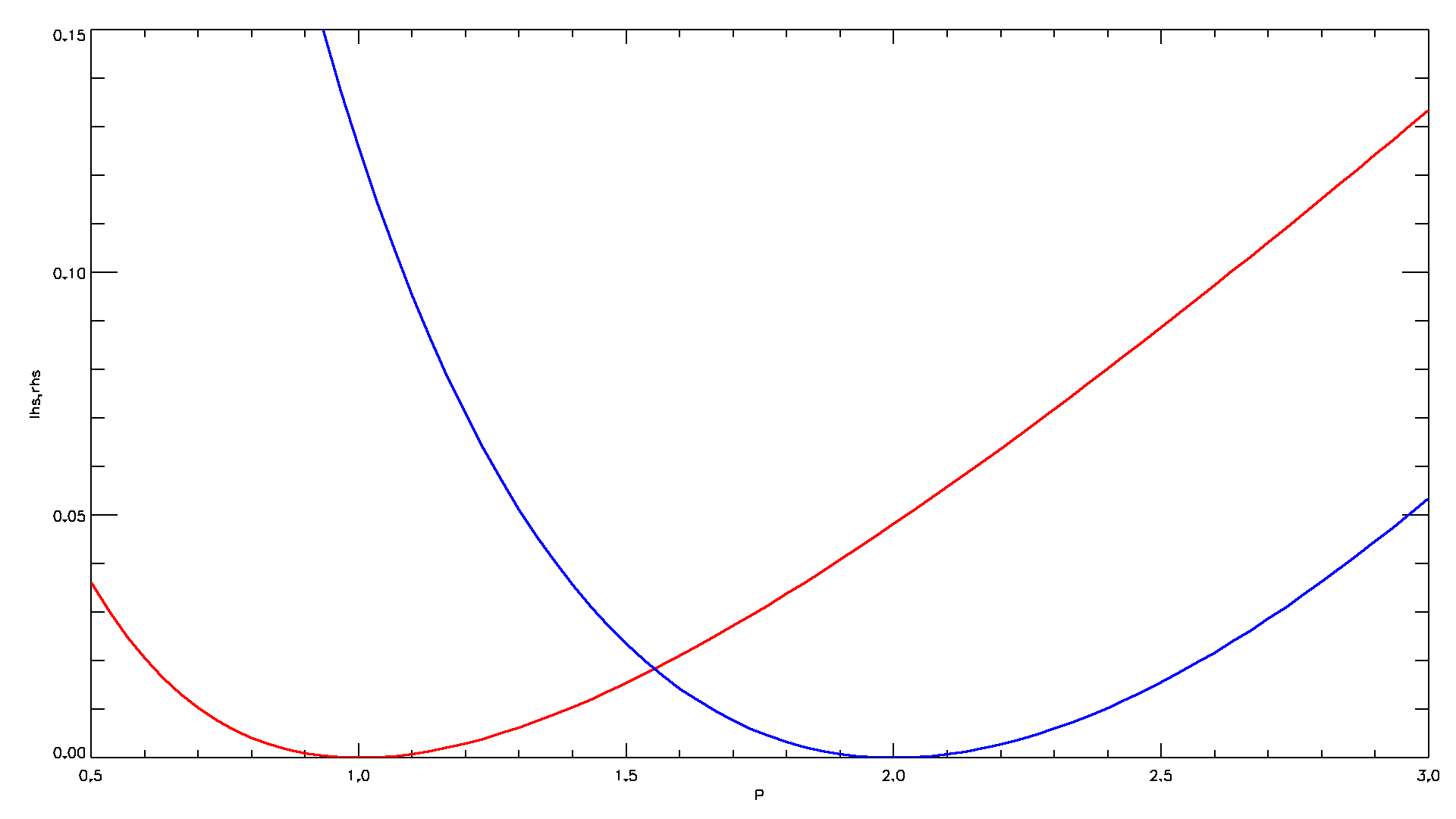

• To solve the Riemann problem you can plot the left hand side (lhs) and the right hand side (rhs) of the above equation to find P where the two are equal:
• Example using Fortran and gnuplot:
  • ifx -g -traceback -check all -fpe0 -o slabsetup slabsetup.f90
    (this uses glass.txt, which is a text version of the glass file with coordinates in the range of 0 . . . 1)
  • ./slabsetup
  • gnuplot grid.plt (to check that the particle positions are set up correctly)
  • compile Gadget with LONG_X=20, LONG_Y=1, and LONG_Z=1 (and PERIODIC and NOGRAVITY)
  • run Gadget using slab.ic as the initial conditions file and BoxSize 1 in the parameter file.
  • ifx -g -traceback -check all -fpe0 -o readsnap readsnap.f90
  • ./readsnap snap_000 >snap_000.txt
  • ./readsnap snap_010 >snap_010.txt
  • ./readsnap snap_020 >snap_020.txt

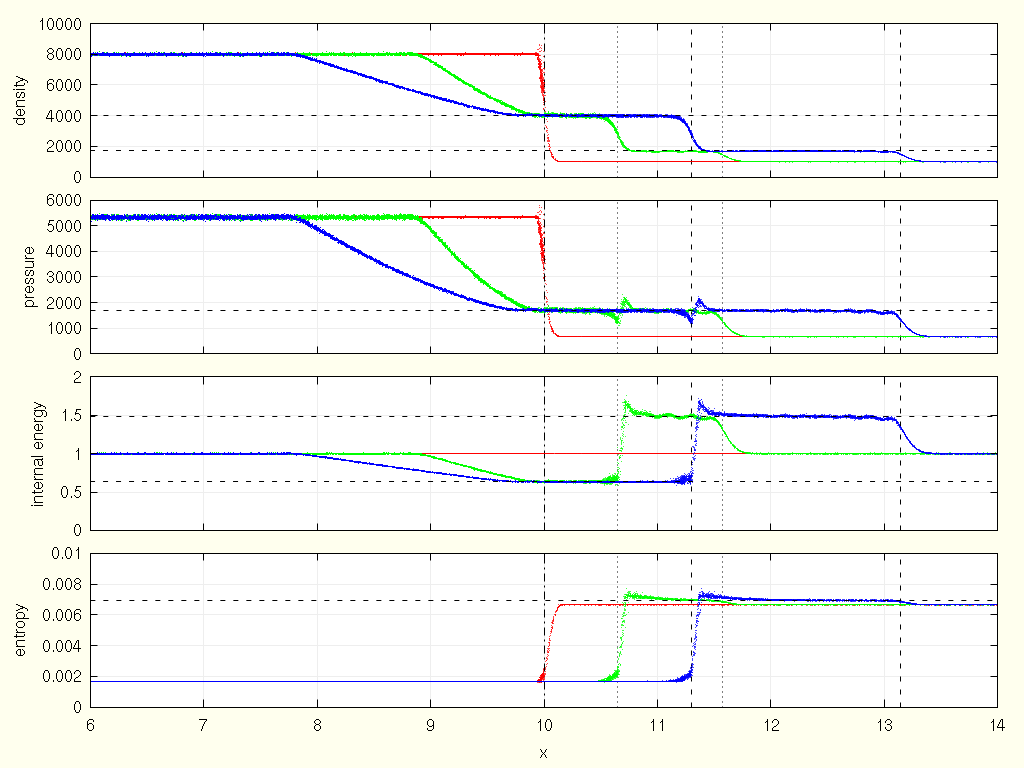

  • gnuplot pressure.plt
  • gv pressure.ps
